Mixing Equipment

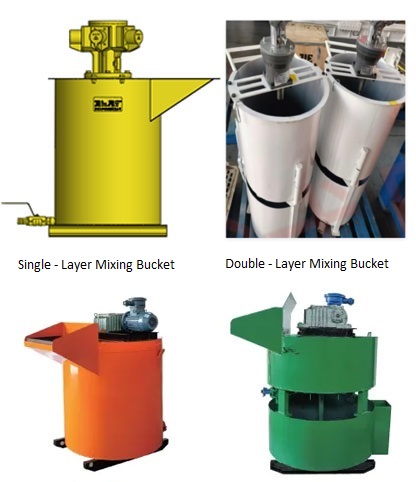

Pneumatic Mixing Equipment

The pneumatic mixing equipment is driven by compressed air,fully stir and mix the grouting or filling materials with water to form a uniform slurry, which is then supplied to various mud pumps and grouting pumps for grouting or filling operations.Using compressed air as power, it can be safely used in special situations. It has strong mixing force, high mixing speed, and high mixing efficiency.


Electric Mixer

The electric mixer is driven by an electric motor. It thoroughly mixes grouting or filling materials with water to create a homogeneous slurry, providing it to different mud pumps and grouting pumps for grouting or filling work. The equipment has a high power and high mixing efficiency.

Product Parameters

Pneumatic Mixing Equipment

Single - Layer Mixing Bucket

Item

Unit

Parameter

Hopper Capacity

L

97

Air Consumption

m³/h

59.1

Maximum Aggregate Diameter

mm

≤15

Loading Height

mm

674

Total Machine Weight

kg

48.5

Overall Dimensions

mm

930×510×920(±50)


Double - Layer Mixing Bucket

Item

Unit

Parameter

Hopper Capacity

L

70×2=140

Air Consumption

m³/h

7.8

Maximum Aggregate Diameter

mm

≤15

Loading Height

mm

942

Total Machine Weight

kg

46

Overall Dimensions

mm

680×470×1250(±50)



Electric Mixer

Item

Unit

JDW-1500S

JDW-1000S

JDW-500S

JDW-300S

Mixing Capacity

L

1500

1000

500

300

Loading Height

mm

1425

1425

980

850

Supporting Motor

Rated Power

KW

7.5

4

3

2.2

Rated Rotation Speed

r/min

1450

1430

1420

940

Total Machine   Weight

kg

860

720

320

250

Overall   Dimensions

mm

2170×1420×1910

1900×1200×1800

1400×900×1600

1300×800×1400


Item

Unit

JDW-400*2

JDW-300*2

JDW-200*2

Mixing Capacity

L

400

300

200

Total Capacity

L

800

600

400

Loading Height

mm

1450

1325

1170

Supporting   Motor

Rated Power

KW

4

3

3

Rated Rotation Speed

r/min

1430

1420

1420

Total Machine Weight

kg

660

380

350

Overall Dimensions

mm

1800×1100×2000

1350×1050×1720

1350×1050×1575
