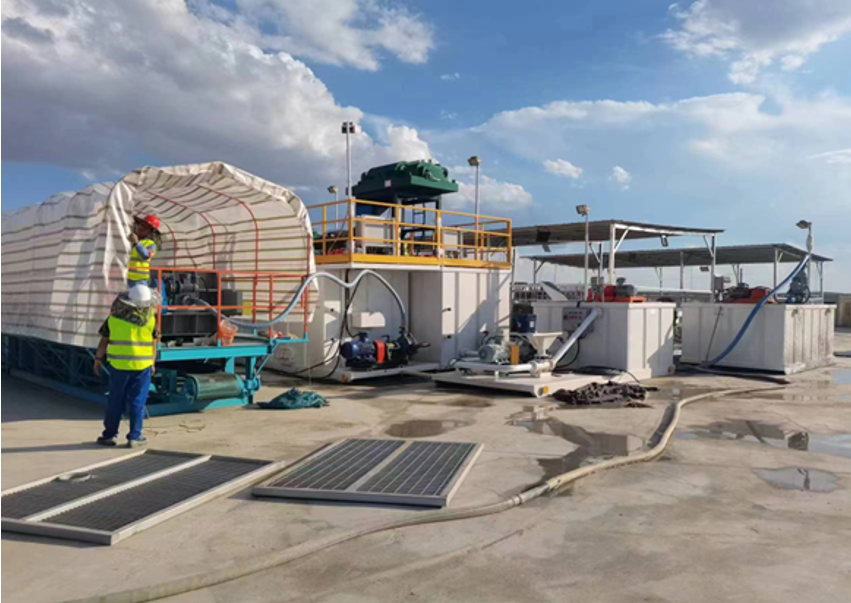

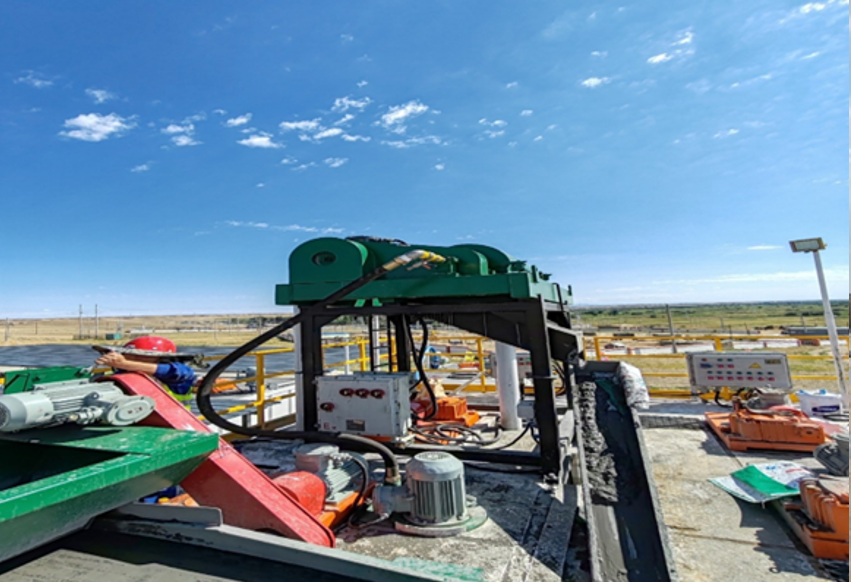

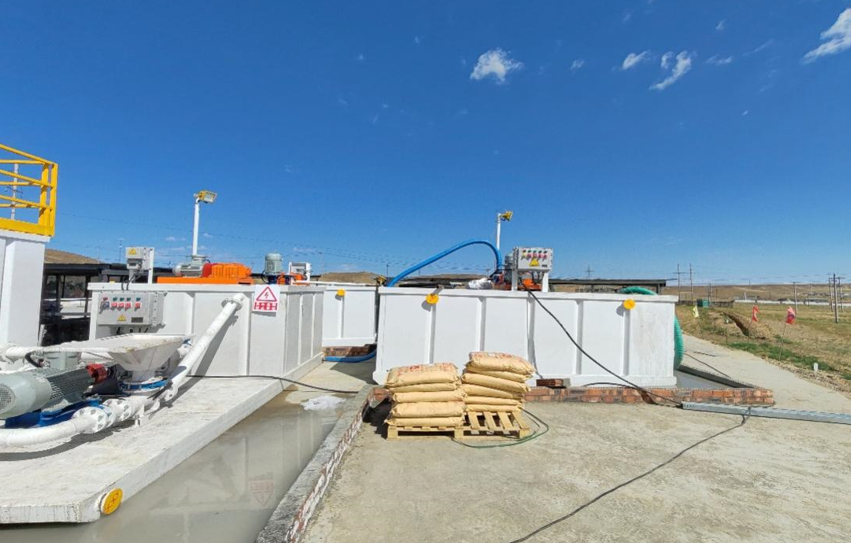

The whole system is divided into four parts: the collection system module, the recycling module, the slurry preparation module, and the non-landing pressure filtration module. It can be used independently or in combination, and is suitable for directional drilling and geological exploration drilling. In addition, the pressure filtration system realizes the integration of the chemical tank, the flocculation tank, and the collection tank into one.The mud returning from the wellhead contains many impurities such as sand, cuttings, and soil. The solid control system can separate the solid phase and the liquid phase. The liquid phase can be pumped by the drilling rig's mud pump for recycling; after the solid phase enters the mud non-landing system and is pressure-filtered, it forms a mud cake, which can be stacked on the spot or transported away.

The total power of the system is less than 200KW, the maximum treatment capacity is 60 m³/h, and it can work normally in an environment ranging from -40°C to +50°C. The total height of the non-detachable parts of the flushing fluid tank does not exceed 3.1m, meeting the requirements of railway, highway and other transportation means.
