Grouting Equipment

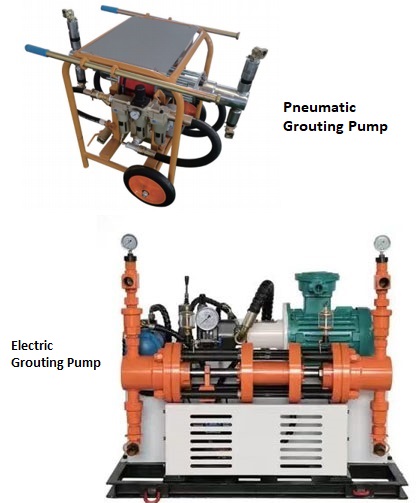

Pneumatic Grouting Pump

The pneumatic grouting pump is a grouting device that uses compressed air as power and adopts a structure with two slurry cylinders arranged on both sides. It is used in grouting projects such as bolt support, leak - proof and water - stop, fire prevention, soft soil reinforcement, broken rock consolidation, and hole sealing. It has a compact structure, small volume, and is convenient for transportation. The up - and - down suction and discharge slurry design facilitates cleaning and has no risk of slurry accumulation. It has reliable performance and can be safely used in special occasions.


Electric Grouting Pump

The electric grouting pump adopts a synchronous double - cylinder, automatic variable - volume, and overall miniaturized design. It is used in grouting projects such as bolt support, leak - proof and water - stop, fire prevention, soft soil reinforcement, broken rock consolidation, and hole sealing. It has low power and multiple specifications. It is fully hydraulically driven. The up - and - down suction and discharge slurry design facilitates cleaning and has no risk of slurry accumulation. The overall miniaturized design makes it have a compact structure and light weight, which is convenient for transportation and underground layout.

Product Parameters

Pneumatic Grouting Pump

Product   Model

Gas supply pressure

Grouting Pressure

Grouting Flow Rate

Air Consumption

Overall   Dimensions

Total   Machine Weight

MPa

MPa

L/min

m³/h

m³/min

mm

kg

4ZBQ18/3

0.2-0.7

0-10

0-40

—

≤2

650×375×280（±20）

35

2ZBQ65/1.5

0.2-0.7

0-3

0-130

0-7.8

≤0.7

1050×530×600

103

2ZBQ30/3

0-6

0-75

0-4.5

95

2ZBQ20/5

0-10

0-45

0-2.7

90

2ZBQ180/0.5

—

0-2.8

0-210

0-12.6

—

—

150

2ZBQ95/1.5

0.2-0.7

0-4.5

0-160

0-9.6

≤3

1050×550×720

146

2ZBQ50/3

0-6.5

0-130

0-7.8

142

2ZBQ30/6

—

0-10

0-105

0-6.3

—

—

138

2ZBQ16/10

—

0-16

0-85

0-5.1

—

—

135

2ZBQ10/16

0.2-0.7

0-25

0-65

0-3.9

≤3

1050×550×720

132

2ZBQ5/21

0-35

0-50

0-3.0

130

2ZBQ3/32

—

0-48

0-35

0-2.1

—

—

128



Electric Grouting Pump

Product   Model

Grouting Flow Rate

Grouting   Pressure

Supporting   Motor

Overall   Dimensions

Total   Machine Weight

m³/h

MPa

Rated   Rotation Speed （r/min）

Rated Power（KW）

mm

kg

2ZBYSB9.3~2.4/1~5-7.5

0-9.6

0-7

1450

7.5

1200×650×950

360

2ZBYSB6.4~1.5/1~9-7.5

0-6.6

0-11

2ZBYSB3.5~0.9/1~15-7.5

0-3.6

0-17

2ZBYSB2.2~0.6/1~20-7.5

0-2.4

0-25

2ZBYSB1.6~0.3/1~28-7.5

0-1.8

0-32

2ZBYSB250/7-11

0-15.0

0-7

1460

11

1350×700×800

380

2ZBYSB180/11-11

0-10.8

0-11

2ZBYSB100/17-11

0-6.0

0-17

2ZBYSB65/25-11

0-3.9

0-25

2ZBYSB48/32-11

0-2.8

0-32

2ZBYSB19.2~4.2/1~6-18.5

0-19.5

0-7

1470

18.5

1850×850×980

680

2ZBYSB13.2~3.3/1~10-18.5

0-13.5

0-12

2ZBYSB9.0~2.4/1~18-18.5

0-9.6

0-20

2ZBYSB5.4~1.2/1~29-18.5

0-5.7

0-32

2ZBYSB24.2~5.2/1~5-22

0-24.6

0-7

1470

22

1850×850×980

720

2ZBYSB16.7~5.2/1~9-22

0-16.8

0-12

2ZBYSB12.5~3.0/1~15-22

0-12.6

0-20

2ZBYSB6.2~1.6/1~26-22

0-6.9

0-32

2ZBYSB25.8~5.4/1~6-37

0-25.8

0-7

1480

37

2000×800×1300

900

2ZBYSB17.7~4.5/1~6-37

0-19.8

0-12

2ZBYSB13.5~3.2/1~18-37

0-13.2

0-20

2ZBYSB6.6~1.8/1~28-37

0-8.1

0-32

2ZBYSB10.0~5.4/5~15-55

0-21.6

0-18

1480

55

2700×1400×1575

1850

2ZBYSB14.5~3.6/1~25-55

0-14.4

0-28

2ZBYSB10.2~1.5/1~30-55

0-10.5

0-35
