The Measurement While - Drill system software is mainly applied to the real - time monitoring during the construction of near - horizontal directional boreholes in underground coal mines. It can monitor key parameters such as the inclination angle, azimuth angle, tool face angle, magnetic field, and acceleration of the borehole during drilling. Meanwhile, it can instantly display the drilling parameters and borehole trajectory, facilitating drillers to understand the borehole construction situation at any time. This enables them to adjust the tool face direction of the screw drill and technological parameters in a timely manner, ensuring that the borehole extends along the designed trajectory as much as possible.

Software Functions

1.The data processing software for measurement while drilling receives borehole measurement data from underground through a serial port.

2.By communicating with the measurement while drilling system, it can obtain various key measurement parameters in real - time to ensure real - time monitoring and data recording of the drilling operation.

3.A continuous measurement function is added to prevent data loss and unexpected situations.

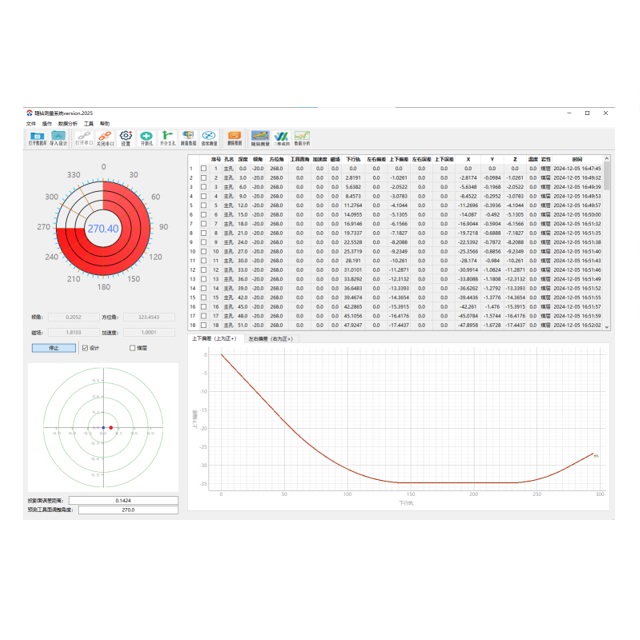

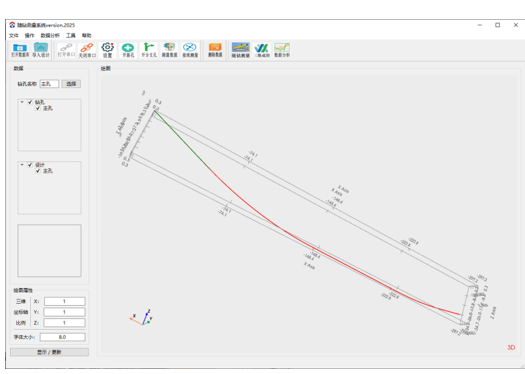

4.It calculates the up - down and left - right displacement deviation values and error values of the borehole, as well as the geographical coordinate values of the borehole trajectory in the geographical coordinate system and the coordinate values in the three - dimensional space, and then displays them in the form of graphs.

5.It can import borehole design trajectory data and coal seam data to guide on - site borehole operations.

6.Through the database management function, it can save measurement data in real - time and export the measurement data.

7.It can achieve remote transmission of data between underground and the ground.
