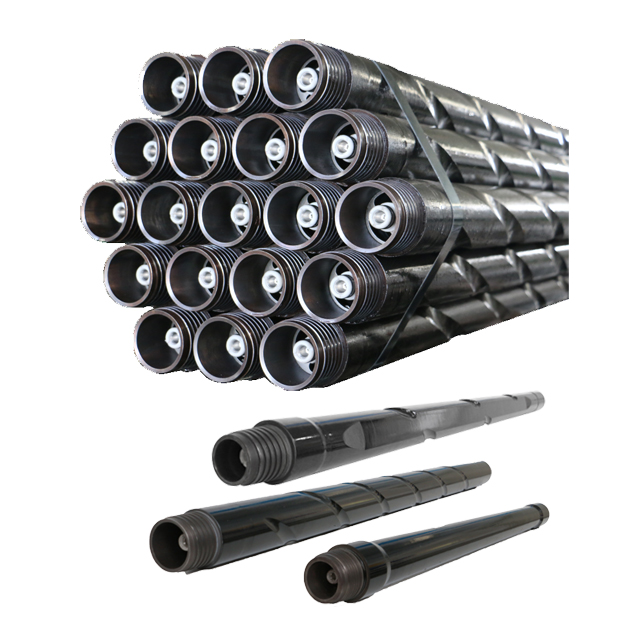

Directional Drilling Pipes

Product Features

1. Steel directional drill pipes

The drill pipe is composed of four parts: a friction-welded drill pipe body, a conduction wire, an insulating component, and a supporting component. The conduction wire, the insulating component, and the supporting component form the central cable-passing device of the drill pipe, ensuring the transmission of measurement-while-drilling signals.


2. Due to the low magnetic permeability of its material, non - magnetic drill pipes are mainly used with wired and wireless directional instruments, providing an effective non - magnetic environment for the instruments to ensure the accurate and effective signals of the directional instruments. At the same time, the drill pipe also has high torque - resistant and tensile - resistant strengths to cope with complex formation conditions.

Product Parameters
Drill Pipe Name

Connection Method

Joint

Diameter/mm

Length/mm

External - flush Cable - passing Drill Pipe


Double - shoulder High - strength Trapezoidal Thread

73

70

1500、2000、3000

76

73

89

89

95

95

118

114

Double - head Spiral Cable - passing Drill Pipe

Double - shoulder High - strength Trapezoidal Thread

73

70

1500、2000、3000

76

73

89

89

95

95

118

114

Single - head Spiral Triangular - prism Drill Pipe

Double - shoulder High - strength Trapezoidal Thread

73

70

1500、2000、3000

76

73

89

89

95

95

118

114
