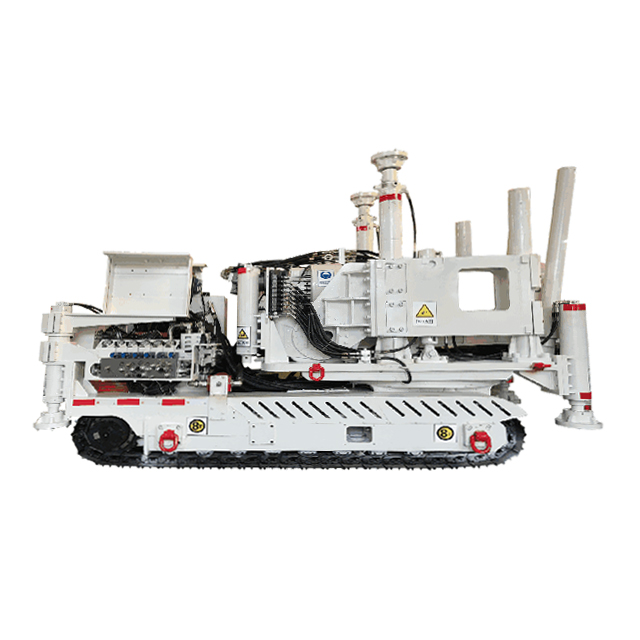

ZYL-6000D(D) tracked full hydraulic all round split type DDR for coal mine

The ZYL-6000D(D) fully hydraulic crawler directional drilling rig (DDR) for coal mines is a fully hydraulic-driven, split-type, all directional crawler DDR. It boasts the following characteristics:

1.The drilling rig has a high torque and a reasonable speed range, making it well-suited for both small-diameter diamond core drilling and fulfilling the requirements of large-diameter hard alloy core drilling and a variety of engineering drilling applications;

2.The drilling rig exhibits impressive feed and pulling capabilities, making it proficient in handling unique scenarios encountered within boreholes;

3.The drilling rig features an uncomplicated structure, a well-thought-out layout, small overall dimensions, and high transmission efficiency;

4.The operation of the drilling rig is centralized, straightforward, and convenient, offering flexible and reliable control while significantly reducing labor intensity;

5.The drilling rig is able to mobilize itself as a single unit, facilitating a convenient and swift installation process, ultimately leading to a substantial reduction in preparation time;

6.During construction, the drilling rig can achieve a drilling angle ranging from -30° to +90°, along with an azimuth angle spanning from 0° to 360°

Product Parameters
ZYL-6000D(D)-series tracked full hydraulic DDR(All round DDR)
Main technical parameters
Tese itemUnitParameters
1Drilling rigMainRated pressureMPa26
2Rated flow rateL/min140
3Rated torqueN.m6000
4Rated speedr/min45
5Maximum speedr/min200
6Working pressureMPa30
7Feed forcekN210
8Feed speedm/min9
9Pulling force kN210
10Pulling speedm/min4
11Feed distancemm800
12Drilling depthm>1000
13Ending diametermm113/133
14Opening diametermm113/133/153
15Drilling angle°-120
16Drill rod diametermmØ70/Ø73/Ø89
17Anchor forcekN100
18Water supply pressureMPa1-1.5
19Minimum water supplyL/min360
21Overall dimensionmm3750*1302*2660(±20)
23Pump stationRated pressureMPa31/24
24Rated flow rateL/min90/60
25Motor model-YBK3-280S-4
26Rated voltageV660/1140
27Rated currentA80.2/46.3
28Rated powerkW75
29Effective tank volumeL250
30Travelling mechanismTravelling modemmTracked
31Working PressureMPa23
32Working flowL/min100
33Travelling speedm/min25
34Climbing angle(°)20
35Track shoe widthmm250
