Usage

The YSXD18 electromagnetic MWD system is designed for tracking and monitoring the borehole trajectory of horizontal, directional, and geological exploration wells drilled at any angle on the surface. It provides key parameters such as deviation angle, azimuth angle, tool face angle measured during drilling. Additionally, it enables real-time 3D display of drilling parameters and trajectory, facilitating continuous monitoring of downhole trajectory changes and allowing for real-time adjustments to achieve precise drilling control.

Characteristics

It can monitor multiple data in real time: deviation angle, azimuth angle, tool face angle, total magnetic field and total gravitational acceleration;

It has fast transmission rate. The measurement of a set is efficient, and the construction of a well depth of two kilometers can save nearly a day’s cycle;

The tool face update speed is rapid, enabling the driller to effectively enhance weight on bit control and improve drilling efficiency;

It remains unaffected by drilling construction technology, making it suitable for various gas, underbalance, and other construction operations with strong adaptability.

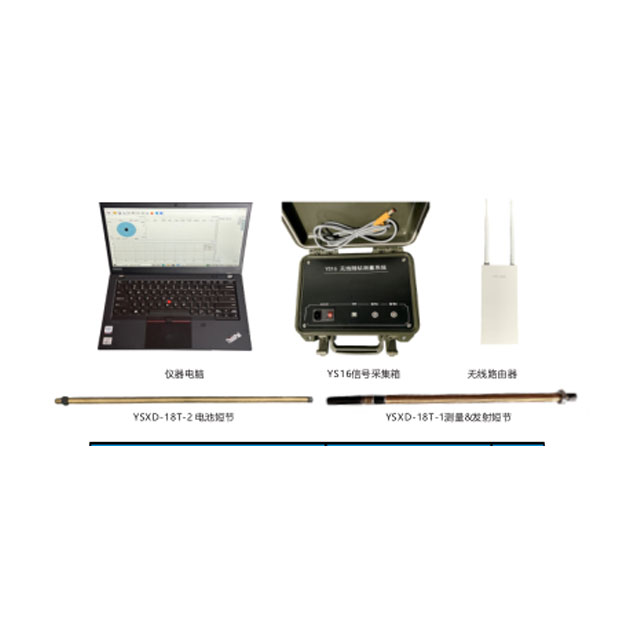

Complete equipment configuration

Instrument computer

YS16 signal acquisition box

Wireless routers

SXD-18T-1 MWD tubes-Measuring & Launching nipple

YSXD-18T-2 MWD tubes-Battery sub
