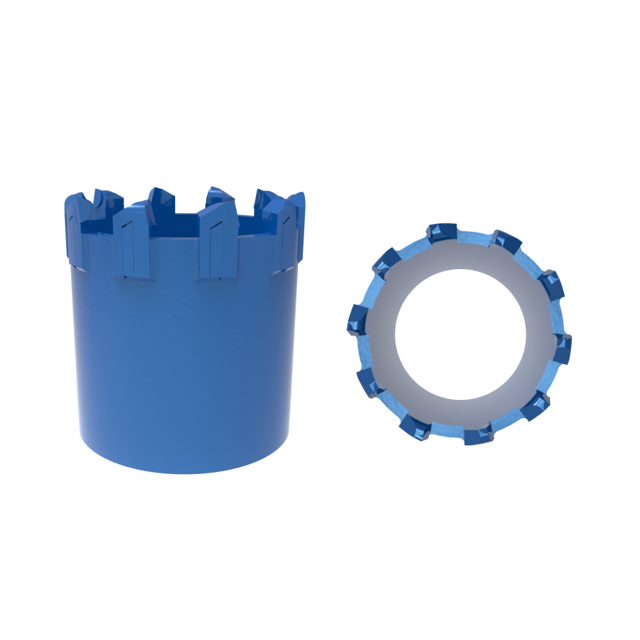

PDC Casing Drill Bit

Specifications that match the casing sizes, such as φ95, φ114, φ127, φ146, φ168, etc.

The casing drill bit is equipped with PDC cutting teeth and breaks rocks by scraping with the composite blades. It can quickly lower the casing into the wellbore, providing support and protection to the wellbore wall, reducing the scouring and soaking of the wellbore wall by formation fluids, and maintaining the stability of the wellbore.

Product Parameters

Common specification(mm)

φ95

φ127

φ114

φ146

φ168

Bit parameters

Blade numbers

8

12

10

12

16

Main cutter dimensions(mm)

13.44

13.44

13.44

13.44

13.44

Main cutter number

8

12

10

12

16

Gauge cutter

Cemented   carbide

Cemented   carbide

Cemented   carbide

Cemented   carbide

Cemented   carbide

Drilling parameters

Drilling pressure(kN)

20~40

40~50

30~50

50~80

50~80

Rotary speed(rpm)

150~300

100~200

100~260

100~200

100~200

Pump capacity(L/min)

150~300

200~300

200~300

250~480

250~480
